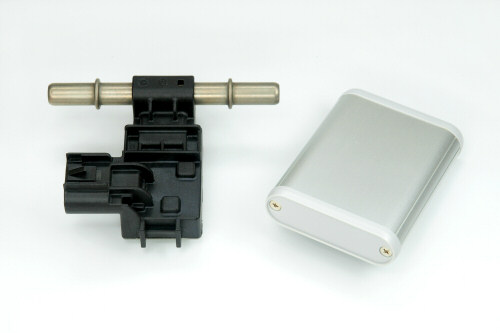

Flex-Fuel Measurement System.






Flex-Fuel Measurement System.



Sensor calibration and data-logging software DMACS.










Flex-Fuel Measurement System specification

 Sensor system
 characteristic
 Measuring Range Ethanol mixture 0% to 100%
 Fuel temperature -40°C to +125°C
 Accuracy 5%
 Update rate
 Interval 50ms
 Supply Voltage DC+7.2V to DC+16V
 Output RS232C , Serial(TTL) , Voltage 0 to +5v
 Interface RS232C , Serial(TTL) , USB(cable)
 Alcohol (ethanol) mixture output 0 to 100% = 0v to DC+5.0v 12bit Linear
 Fuel temperature output -40°C to +125°C = 0v to DC+5.0v 12bit Linear
 Environment -40°C to +125°C
 Fuel temperature -40° to +90°C
 Software Conditions of operation
 DMACS
 Digital Measurement and Control System.
 OS Windows XP (32bit)
 Windows Vista , 7 , 8 (32/64bit)
 CPU Pentium equivalent processor 1.5GHz <
 RAM Windows XP 800MB < , Windows Vista,7 1GB <
 Drive
 CD-ROM (or DVD) drive or Internet connectivity
 Hard disk
 600MB or more.(.NET Framework include)
 100MB or more. (DMACS only)
 Display XGA 1024x768 (Minimum)
