Noncontact DC current-voltage sensor MD series 25A 50A 100A

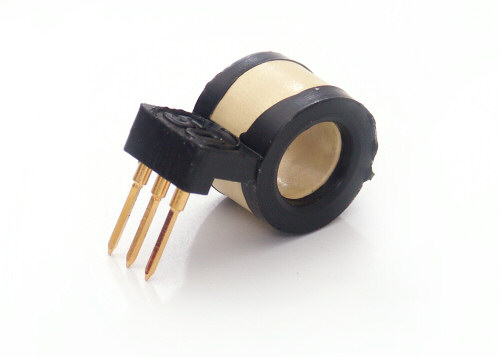

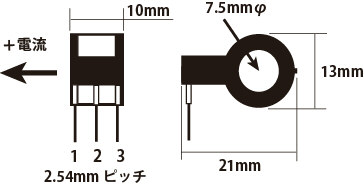

MCS-MD series

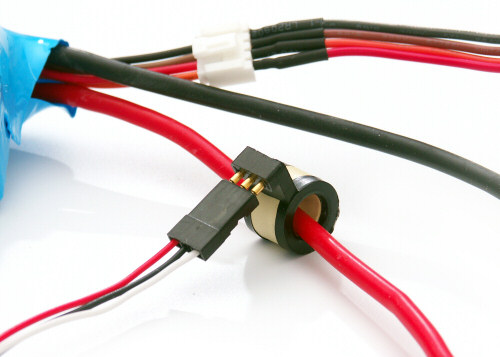

DC current sensor is a magnet using the Hall effect, and the non-connecting small DC current sensor.
It does not have a loss of electric power and completely isolation from a measurement circuit.













MCS-MD series      MCS-SD series


 Rated measurement current
 MCS-MD2575 (DC±25A)
 MCS-MD5023 (DC±50A)
 MCS-MD10019 (DC±100A)
 Maximum measurement current
 MCS-MD2575 (±DC60A)
 MCS-MD5023 (±DC95A)
 MCS-MD10019 (DC±120A)
 (linearity un-guaranteed)
 Power supply (VCC)
 DC +4.5V to +10.0V
 Temperature range -35 °C to +120 °C (maximum rating)
 Consumption current
 <10mA
 Output current <2mA
 Offset voltage Vcc /2 (±2%)
 Output characteristicMCS-MD2575
 37mV/A
 ΔVout Peak (0.925V Vcc=5V)
MCS-MD5023
 23mV/A
 ΔVout Peak (1.14V Vcc=5V)
MCS-MD10019
 19mV/A
 ΔVout Peak (1.9V Vcc=5V)
 linearity
 1% (full scale)
 Accuracy
 ±2% (full scale)
 Temperature error
 0.03%/ °C
 Response 3uS
 Hysteresis 0.5% (error ratio)
 Weight 1.5g
